Urban Tree Density and Its Environmental Impact: Berlin Case Study

Project Overview

In this research project, I analyzed the relationship between tree density, temperature regulation, and oxygen production in Berlin. Utilizing publicly available open-source data, I focused on how urban trees contribute to critical environmental health metrics, including mitigating urban heat and improving air quality. This project emphasizes the direct ecological benefits of urban greenery and provides an interactive platform for public engagement.

Key Outcomes

Tree Data Utilized: 885,825 trees mapped from Berlin’s public dataset.
Temperature Regulation: Areas with higher tree densities showed up to 1.48°C lower average temperatures.
Oxygen Production: Annual oxygen production was calculated based on biomass, using allometric equations, providing accurate estimates of the ecological impact of trees.
Community Engagement: Developed interactive models that allow Berlin residents to visualize the environmental benefits of trees in their local areas.

Project Breakdown

1. Research Aim

This project aims to quantify the impact of urban tree density on two significant ecological parameters:

Temperature regulation, particularly during the summer months when heat stress is most pronounced.
Oxygen production, which contributes to air quality and carbon sequestration efforts in cities.

By focusing on these critical urban ecological factors, the study also highlights the value of green spaces in mitigating the urban heat island effect.

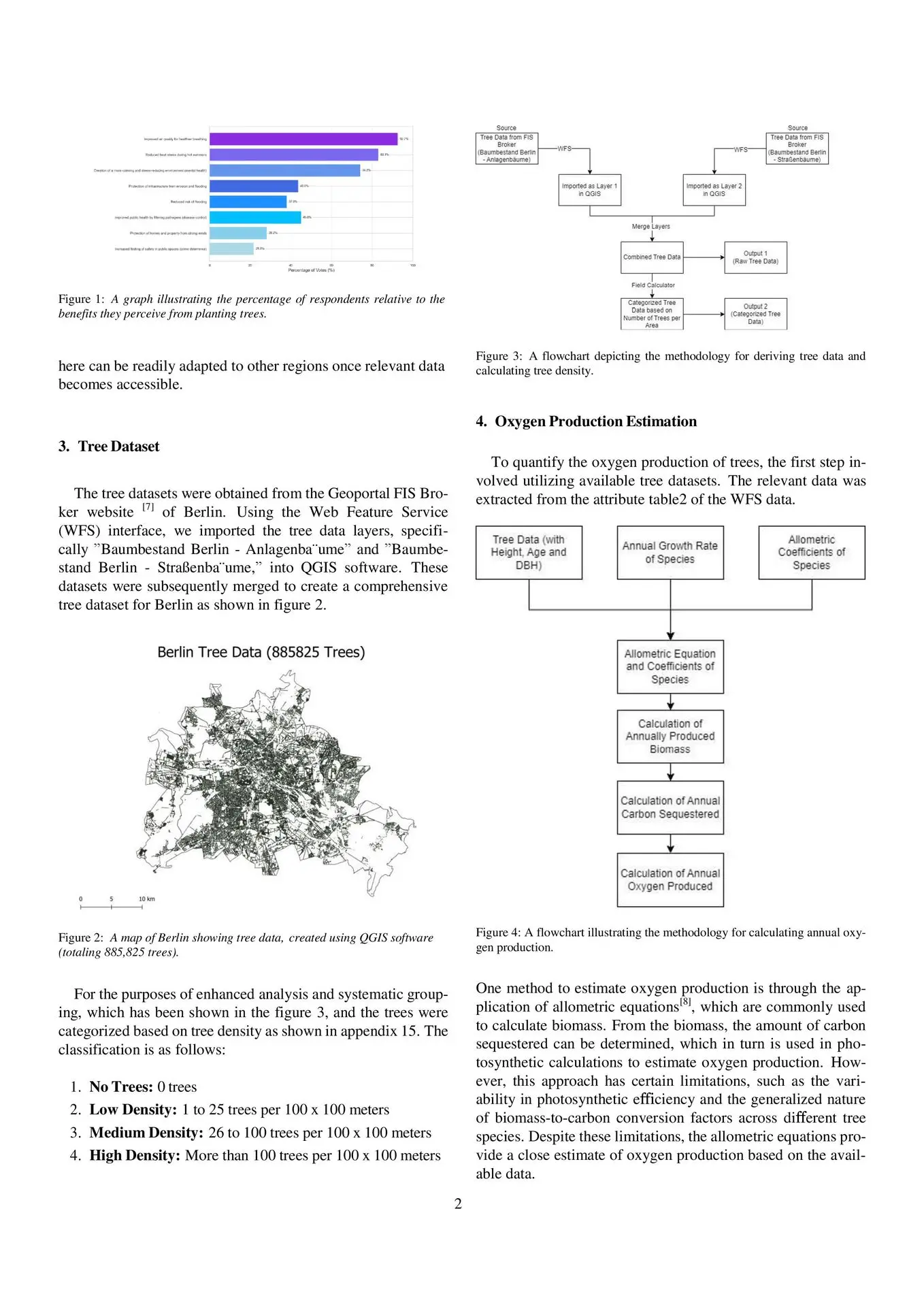

2. Data Collection & Methodology

Tree Dataset:

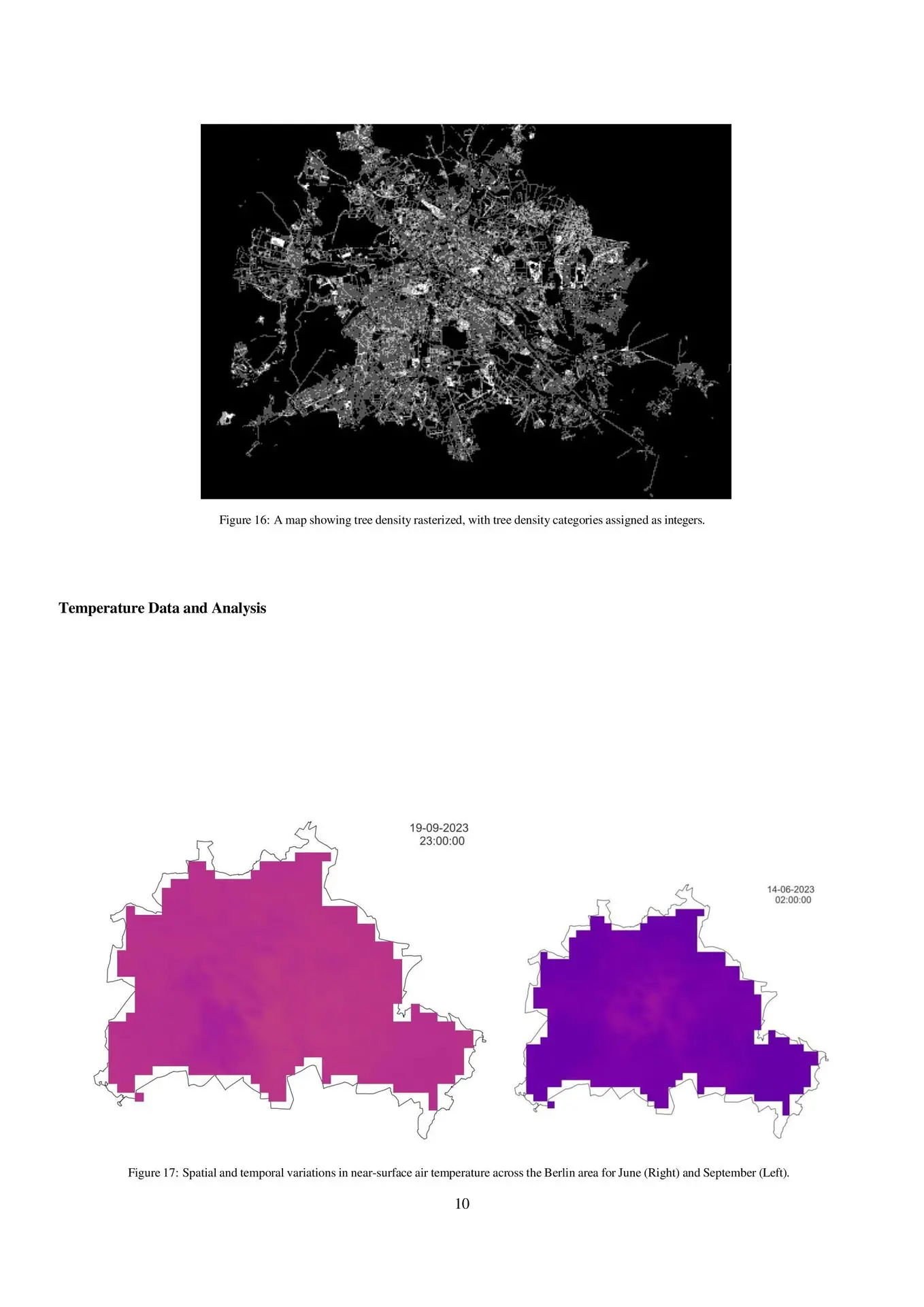

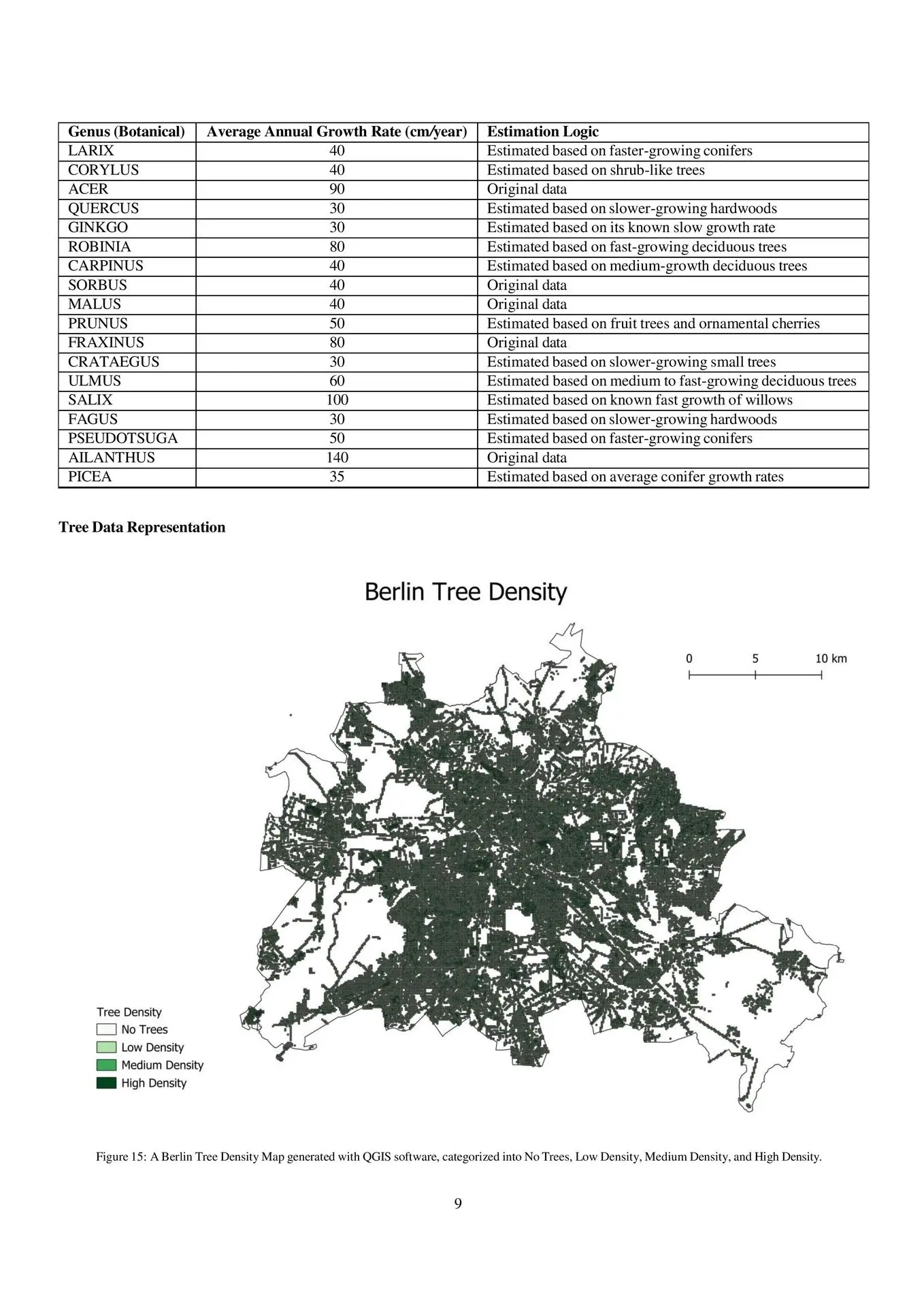

The research utilized publicly available tree datasets from the Geoportal FIS Broker website of Berlin. Using QGIS software, the data of 885,825 trees was processed, categorized, and analyzed based on density:

No Trees: 0 trees
Low Density: 1–25 trees per 100 x 100 meters
Medium Density: 26–100 trees per 100 x 100 meters
High Density: Over 100 trees per 100 x 100 meters

Temperature Data:

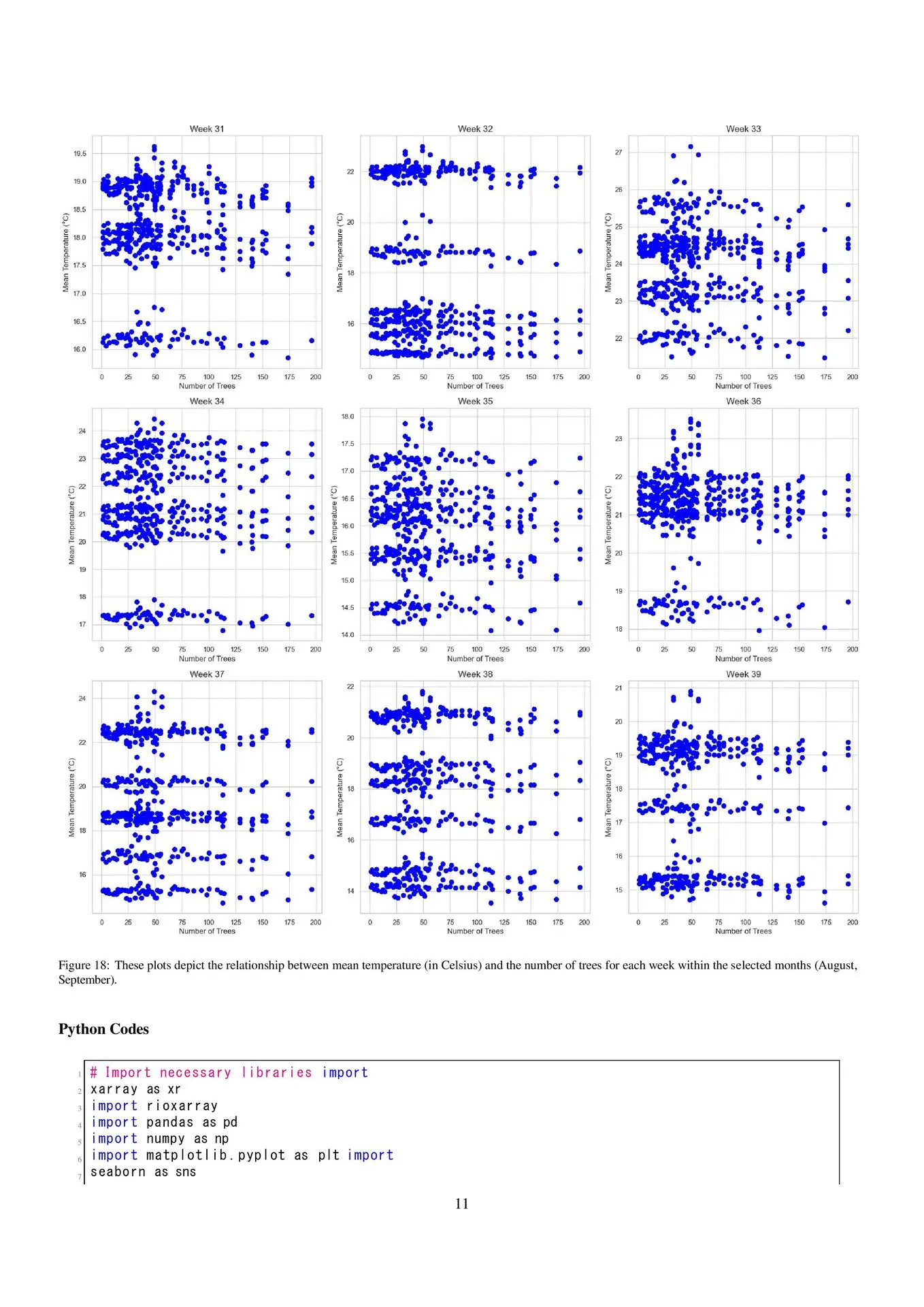

Publicly available hourly temperature data (from Germany) was clipped to the Berlin region and processed to explore temperature variations across areas with different tree densities. Data was collected during the summer months of June to September when heat stress is at its peak.

3. Key Findings

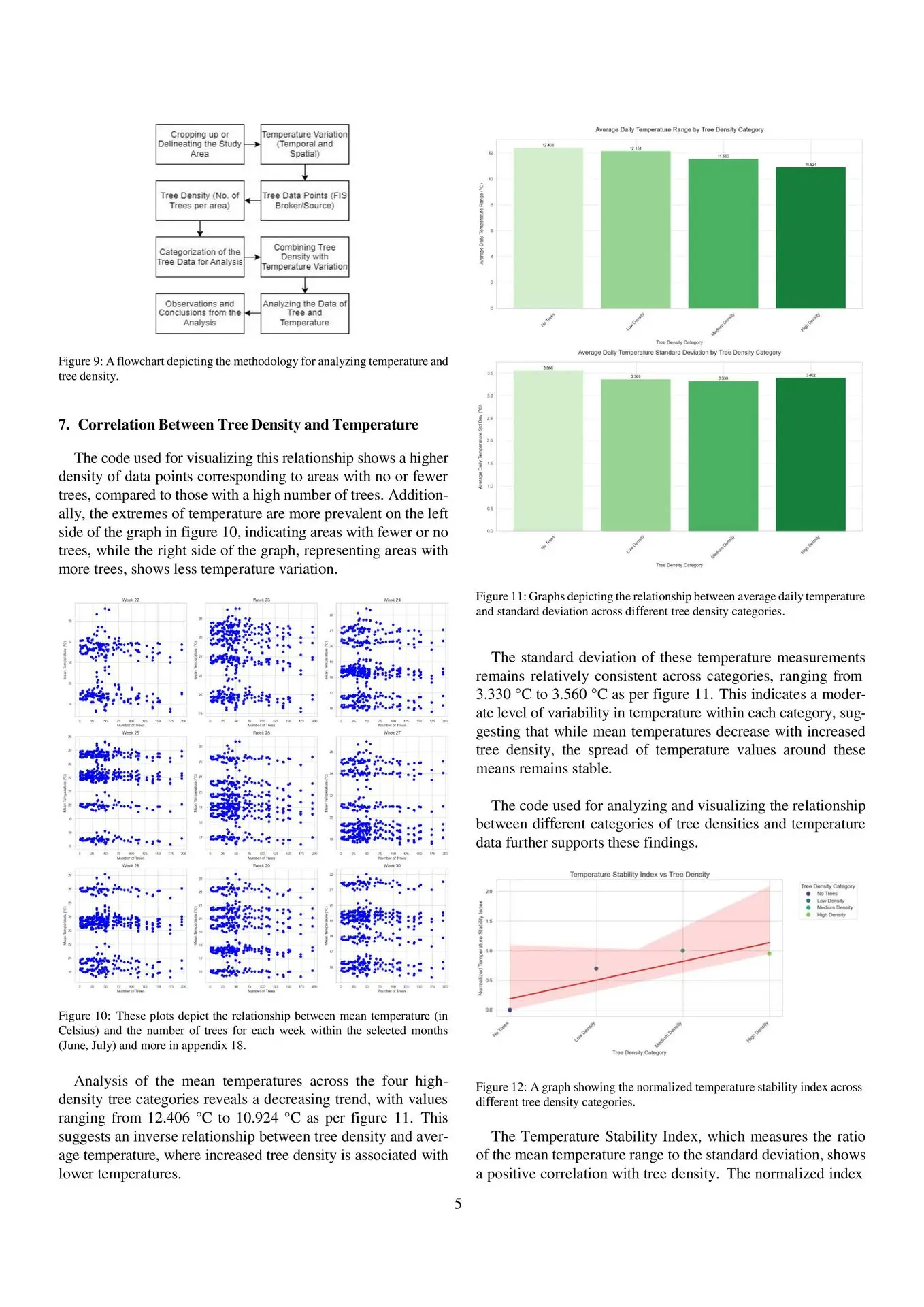

Temperature Regulation:

A direct correlation was observed between higher tree density and lower temperatures.
Areas with high tree density saw temperature reductions of up to 1.48°C compared to treeless zones.
The Temperature Stability Index showed that areas with medium-to-high tree density had less temperature variability, offering a more stable and comfortable microclimate.

Oxygen Production:

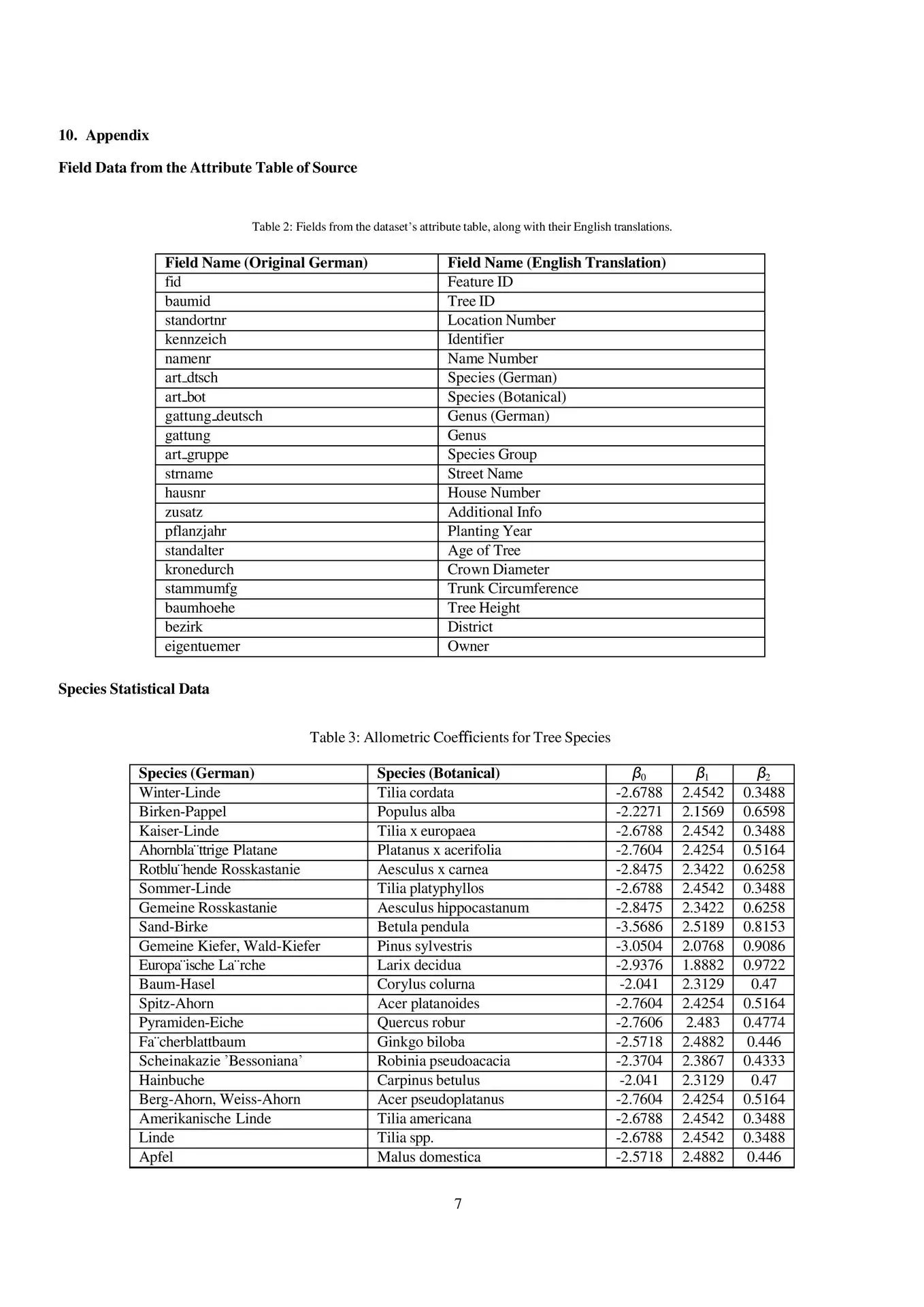

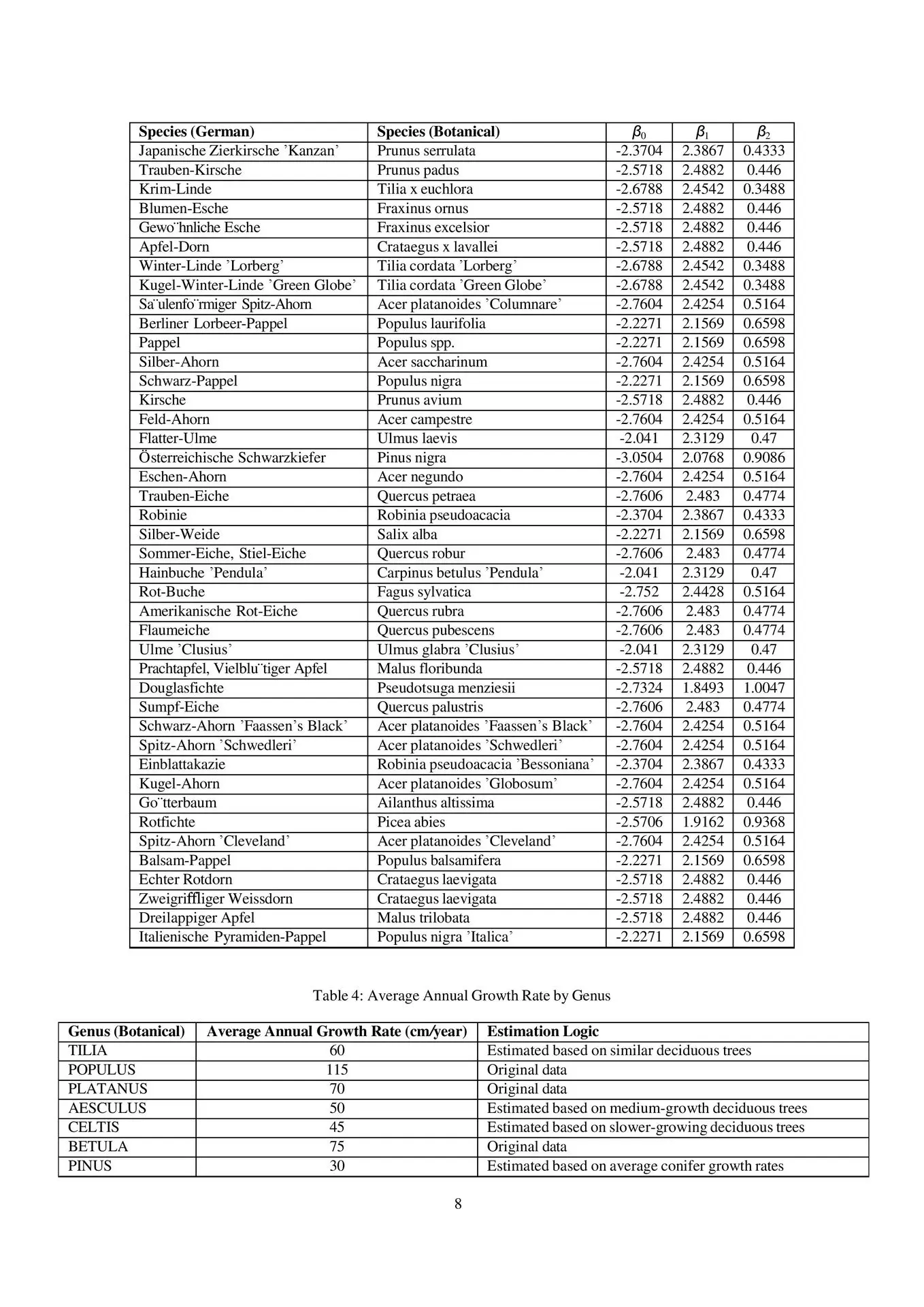

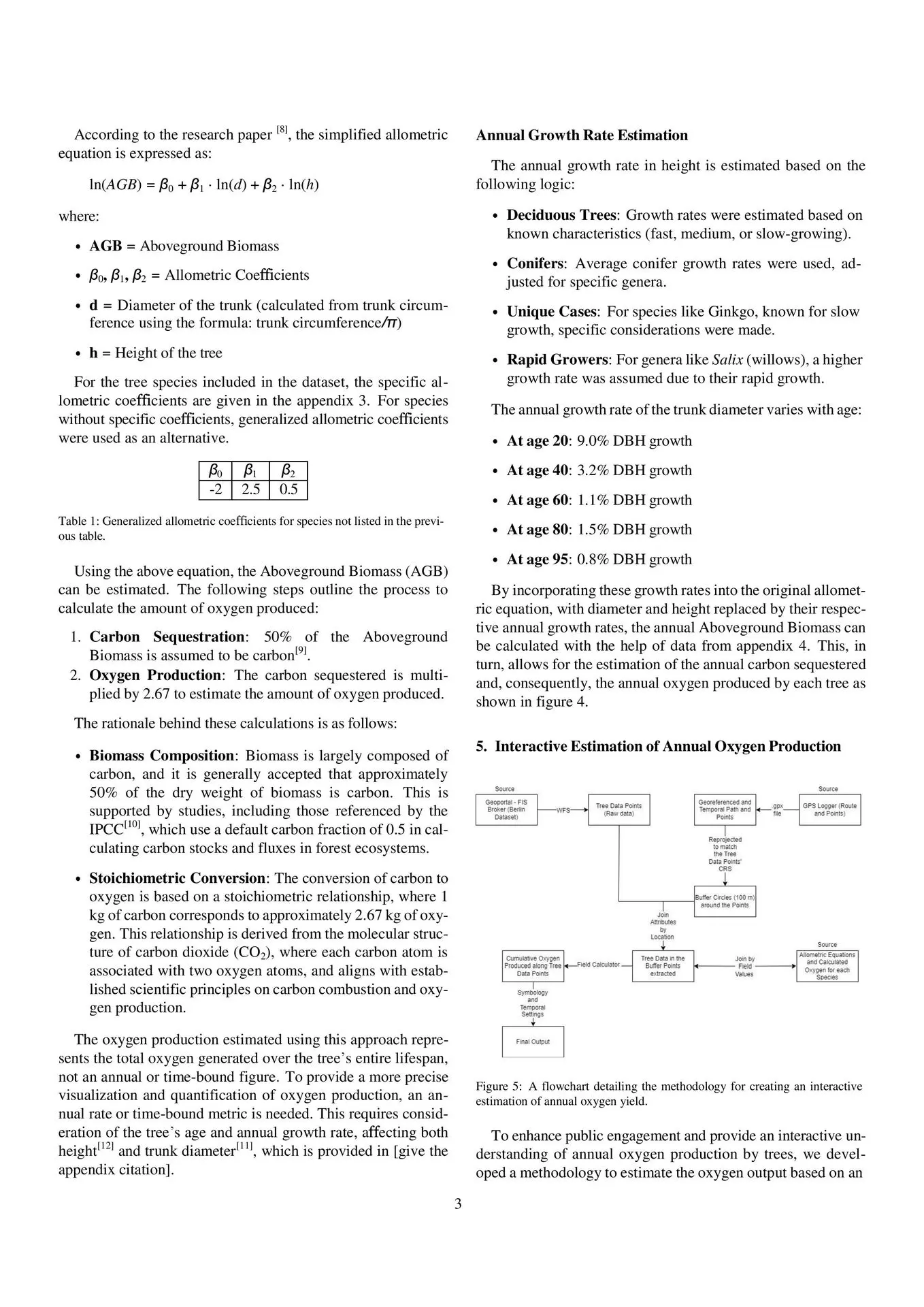

Using allometric equations, I estimated the oxygen produced by trees. These equations account for tree height, trunk diameter, and species-specific coefficients to determine biomass, which translates into carbon sequestration and oxygen output.
The oxygen production formula used:
ln(AGB) = β0 + β1 · ln(d) + β2 · ln(h)
- AGB: Aboveground Biomass
- β0, β1, β2: Allometric Coefficients
- d: Diameter
- h: Height
Trees in high-density areas contribute significantly more oxygen, highlighting their role in urban air quality improvement.

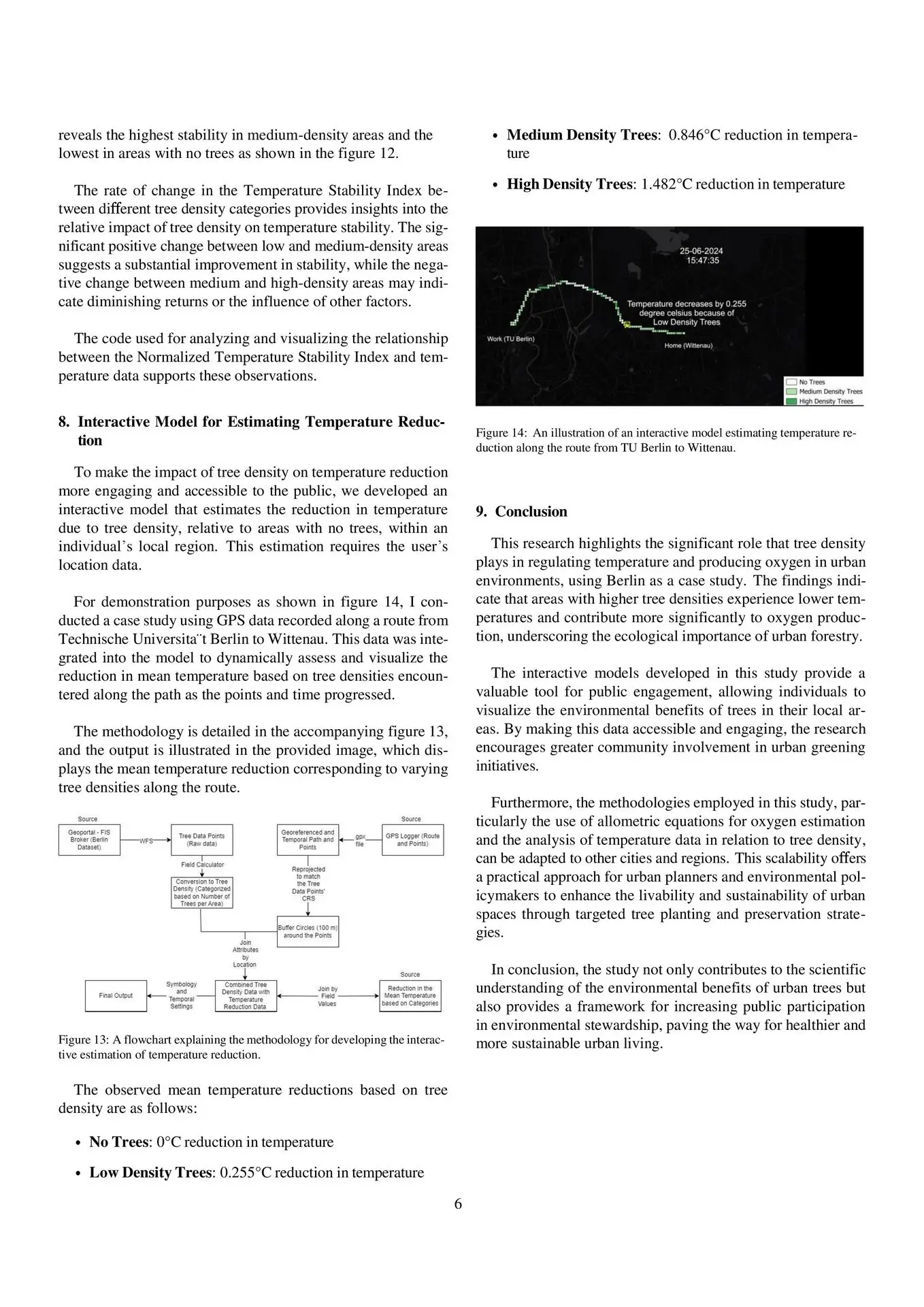

4. Interactive Public Engagement

One of the standout features of this project was the creation of interactive models to engage the public in understanding the tangible environmental benefits of trees in their local areas. These models allow users to:

Visualize annual oxygen production based on tree density in their neighborhood.
Estimate temperature reductions due to local tree cover.

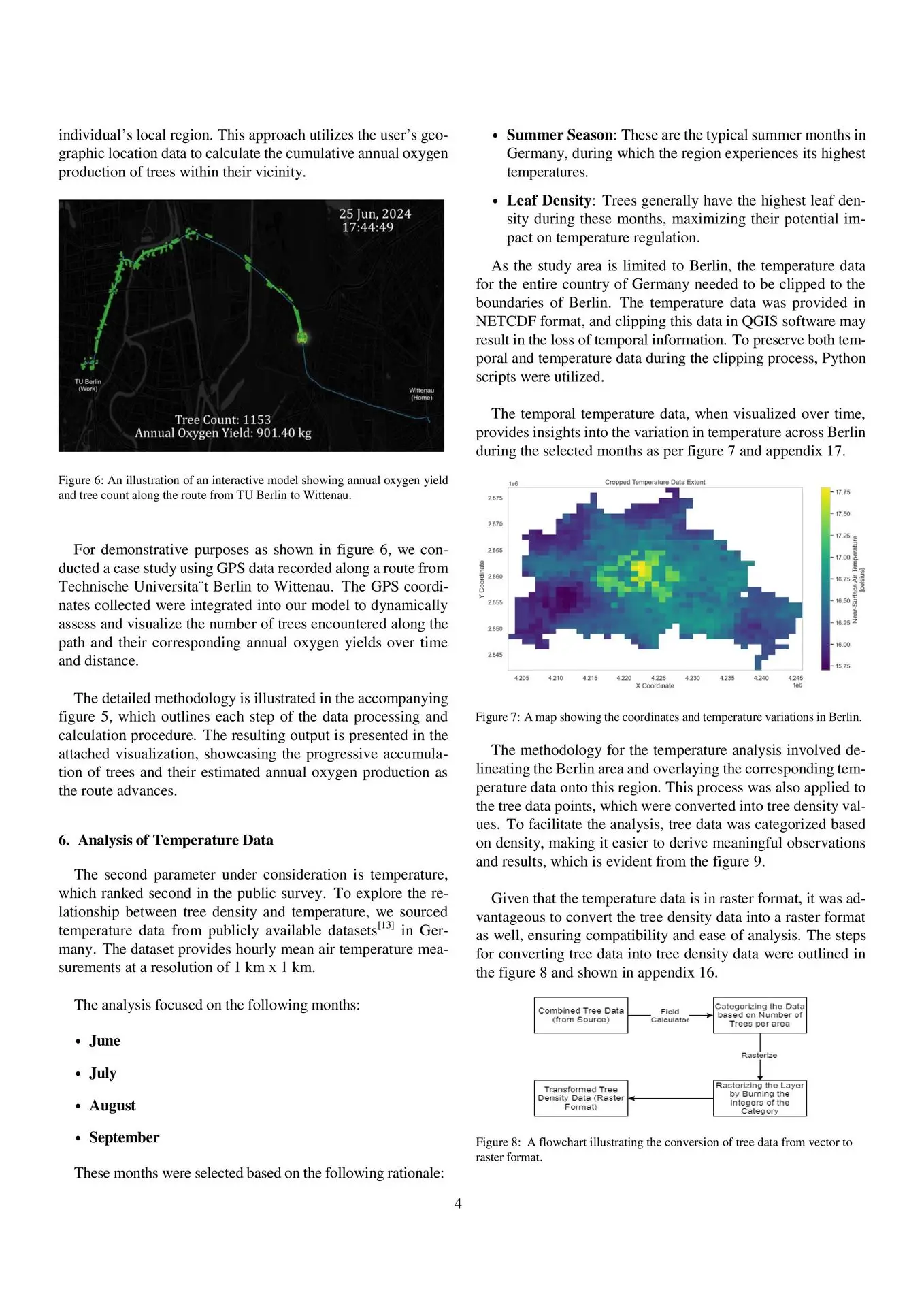

For example, using GPS data, I mapped a route from Technische Universität Berlin to Wittenau. This route allowed users to see the dynamic change in both tree count and their cumulative environmental impact, such as oxygen yield and temperature drop, along their path.

Fig. GIF showing the Oxygen Illustration.

Fig. GIF showing the Temperature Illustration.

5. Conclusions & Future Applications

This project reveals the critical role of urban trees in reducing heat and improving air quality. The findings support increased urban greening efforts and provide a data-driven foundation for future environmental policies.

Additionally, the scalable methodology used in this research can be adapted to other cities and regions, allowing urban planners and environmentalists to make more informed decisions about green space distribution and its ecological benefits.

Interactive Features: The models developed for this project are available for public use and adaptation, offering a hands-on way for communities to understand how tree density impacts their living conditions and overall urban health.

Key Project Highlights

Temperature Reduction: Areas with dense tree cover experience up to 1.48°C cooler temperatures.
Oxygen Output: Estimated oxygen production provides vital insights into the ecological role of trees in urban environments.
Interactive Visualization: Developed tools for Berlin citizens to engage with tree density data, enhancing public awareness and fostering community action.

Research Tools

QGIS Software for spatial analysis and mapping.
Allometric Equations for biomass and oxygen production estimation.

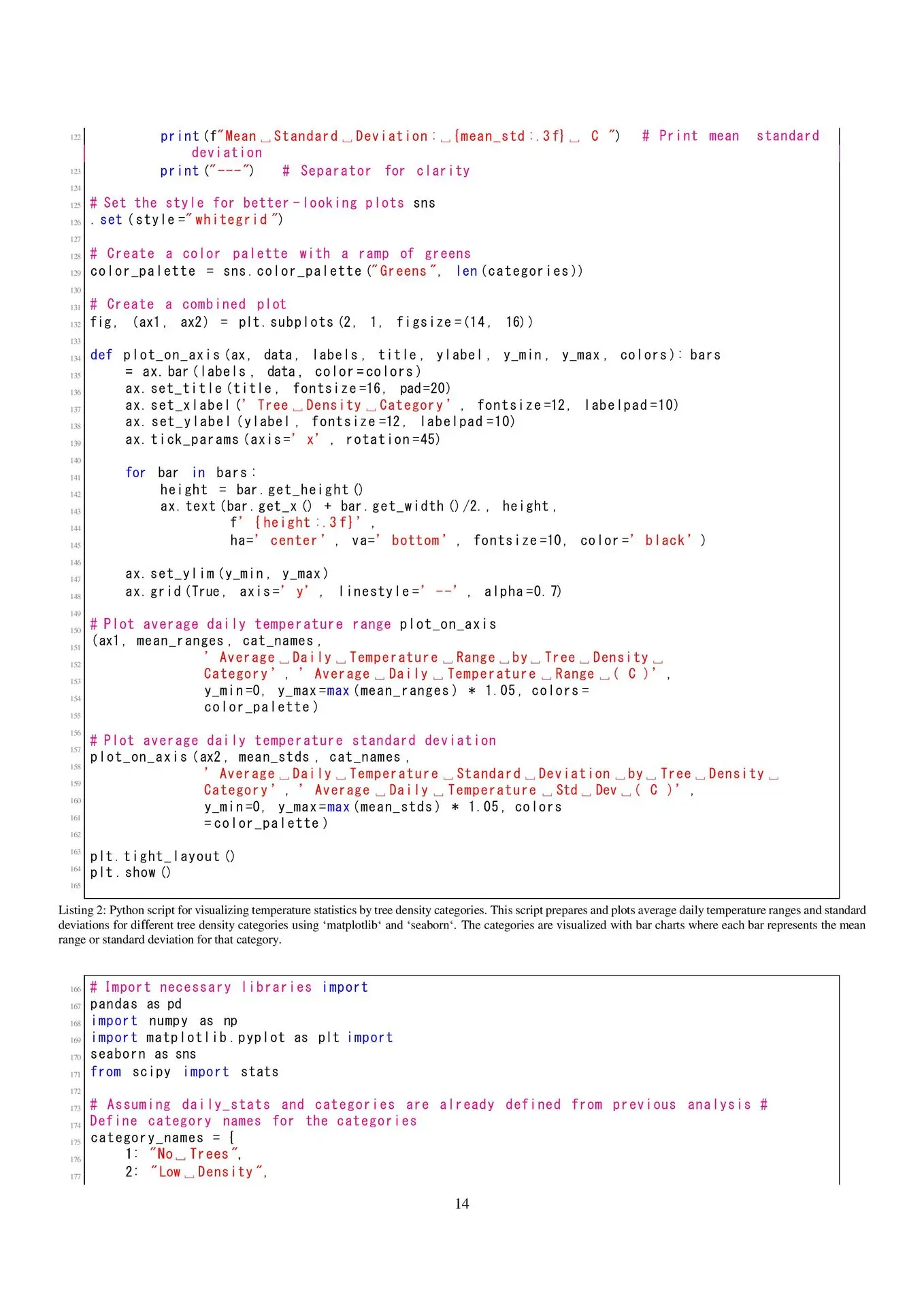

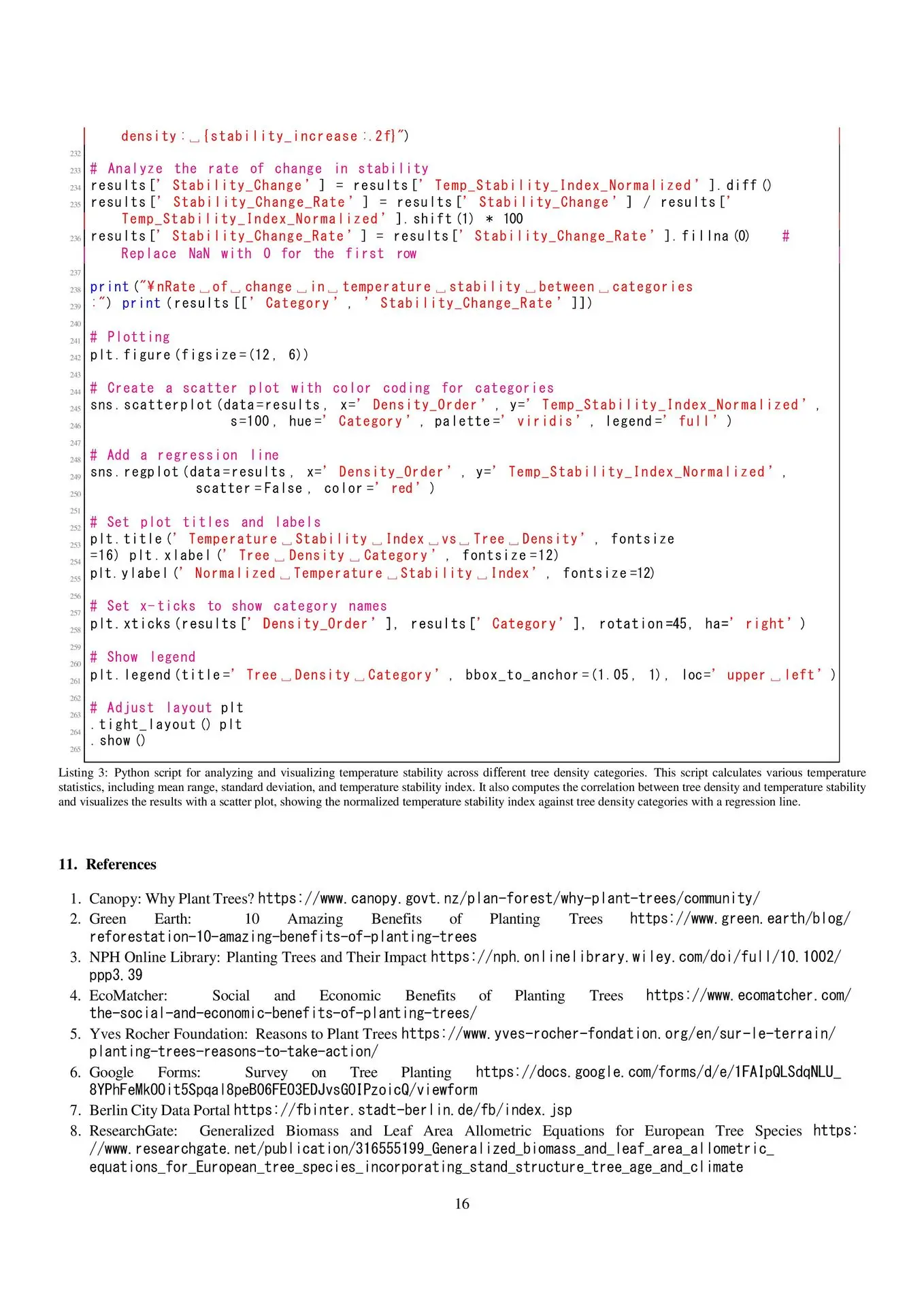

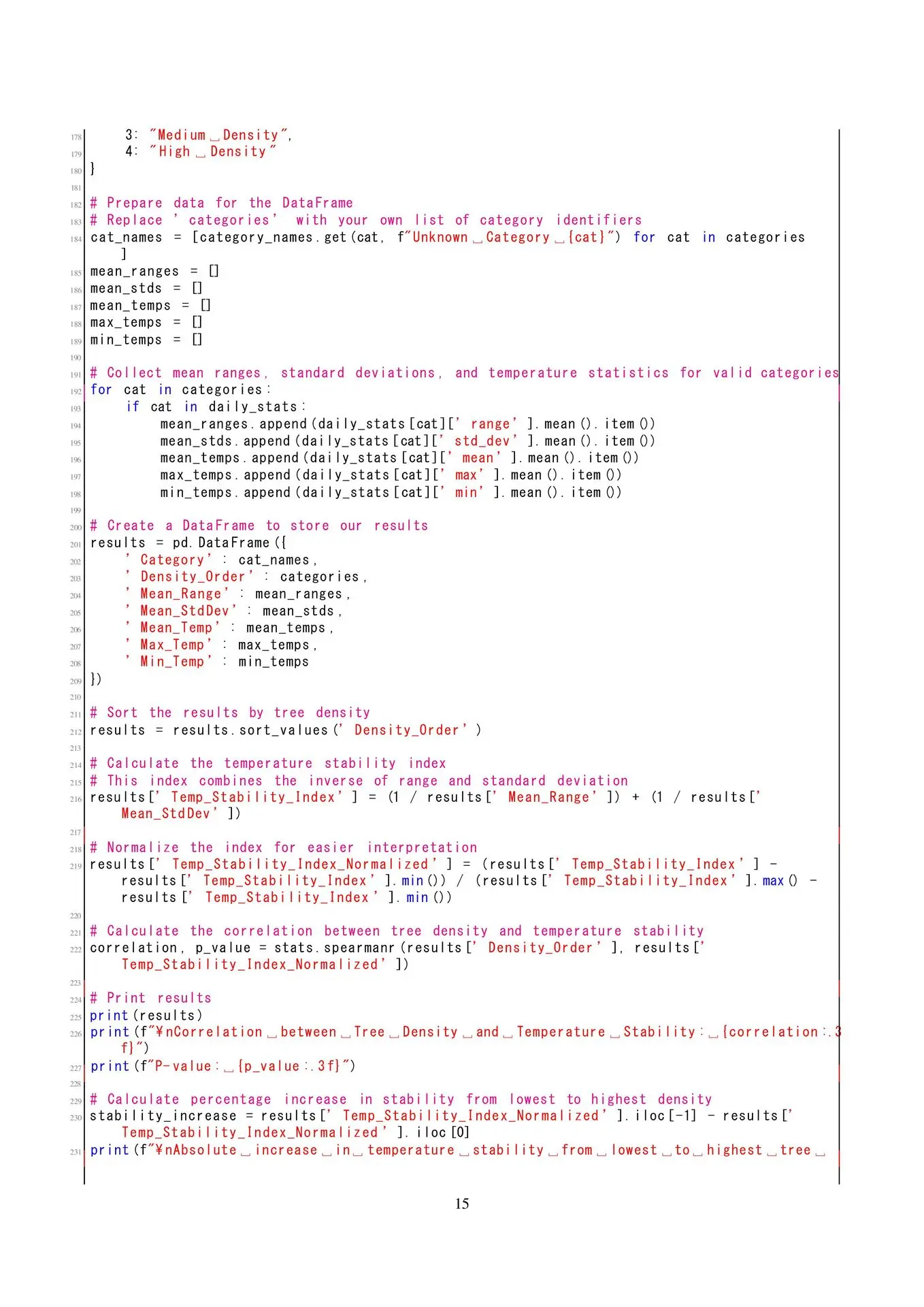

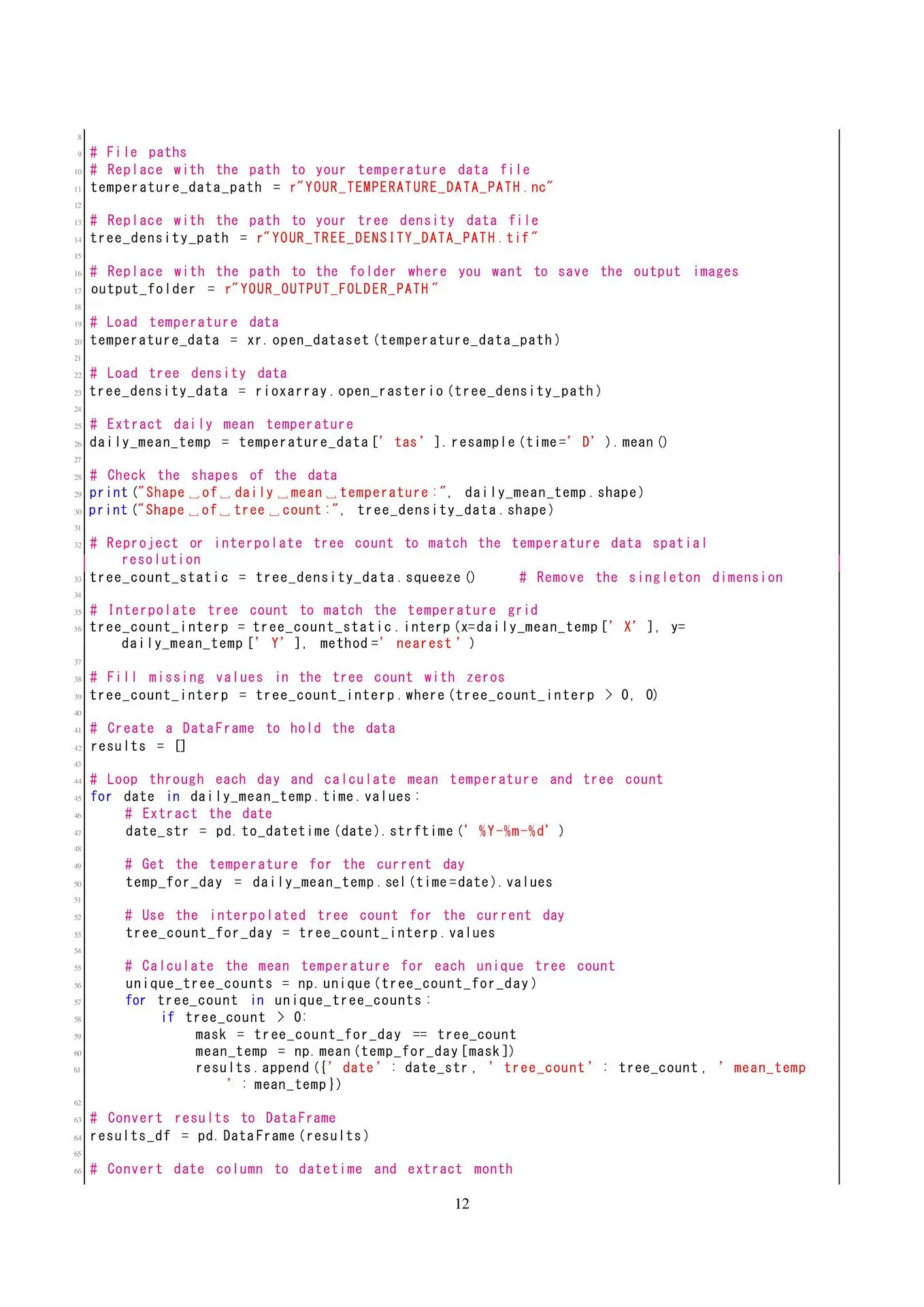

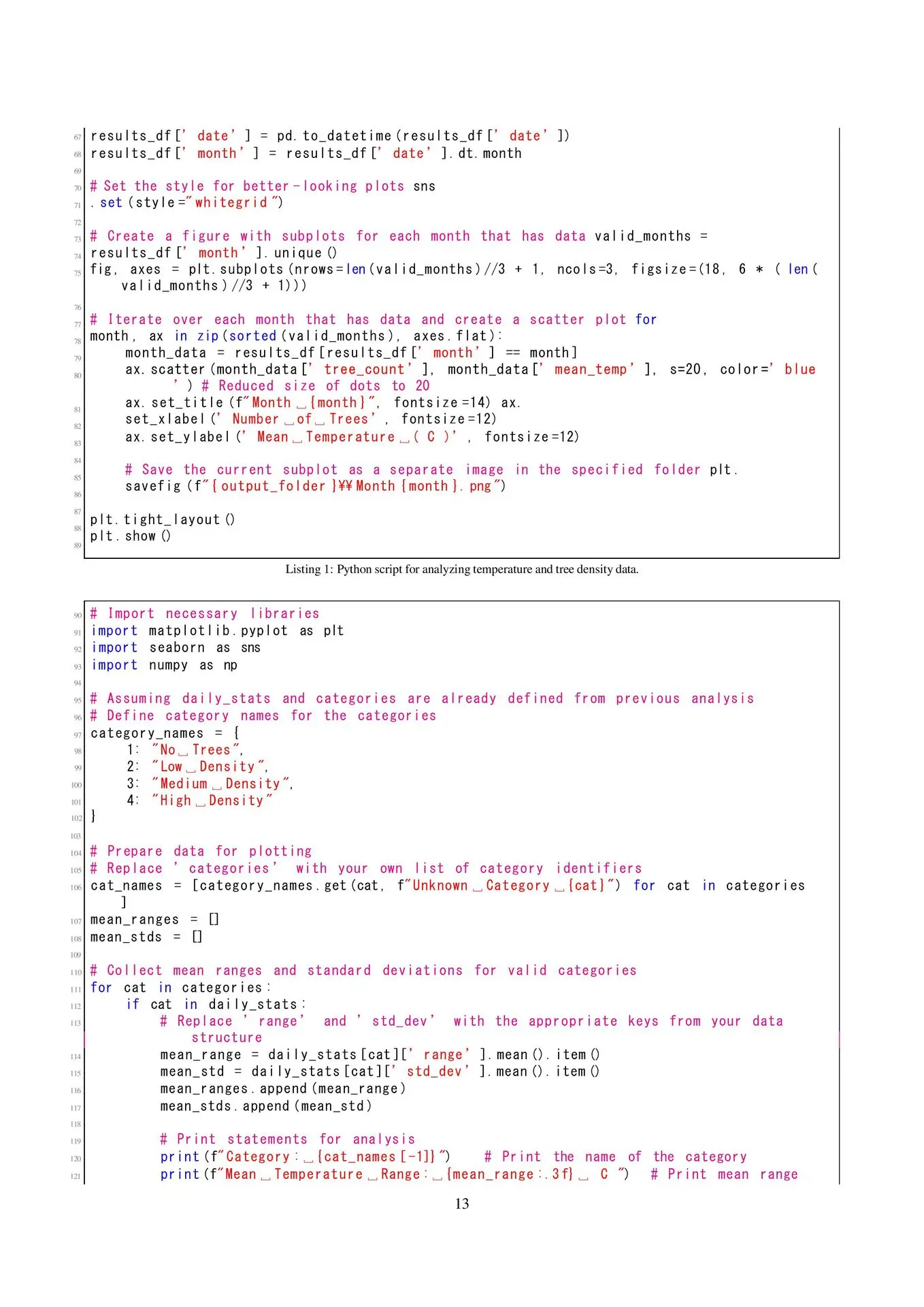

Python scripts for data processing and temperature analysis.

This project not only contributes to academic research but also serves as an actionable platform for public education and engagement in urban sustainability.
